Objects

 Print Previous page Top page Next page

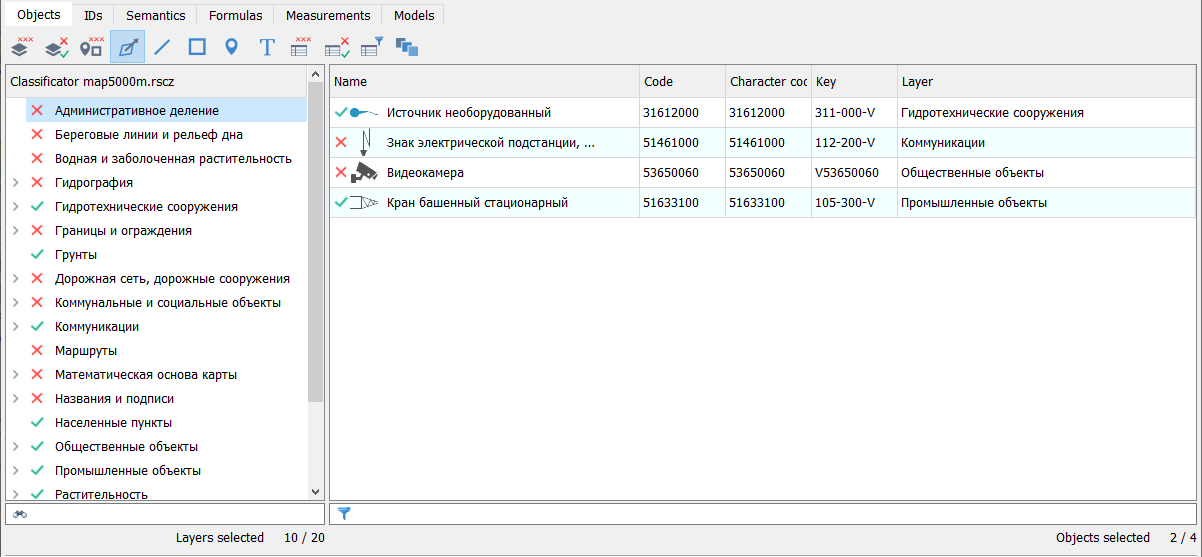

On the Objects tab, selection is performed based on map layers and classes, localization, and map object types.



clip0140



Operation Modes



clip0055 Reset Layers

Reset the selection of objects by layers and classes

clip0056 Invert Layers

Invert the selection of objects by layers and classes.

clip0057 Reset Types

Reset the selection of objects by types (localizations).

clip0058 Vector

Enable/Disable selection for vector objects.

clip0059 Linear

Enable/Disable selection for linear objects.

clip0060 Areal

Enable/Disable selection for areal (polygon) objects.

clip0061  Point

Enable/Disable selection for point objects.

clip0063 Labels

Enable/Disable selection for labels (annotations).

clip0062 Templates

Enable/Disable selection for templates.

clip0064 Reset Objects

Reset the selection by object types.

clip0065 Invert Objects

Invert the selection by object types.

clip0137Show selected only

Filter the object table only by the object types set in the selection context.

clip0066 Select Object Series

Enable/Disable the selection of object series when the status of an object belonging to the series is changed.



Tree of Layers and Classes

Object Table
