Construction of depths matrixes group

 Print Previous page Top page Next page

Construction of a set of depths matrixes in the form of matrixes of qualities MTQ is performed in dialog of Creation of depths matrixes group.





_engbm511

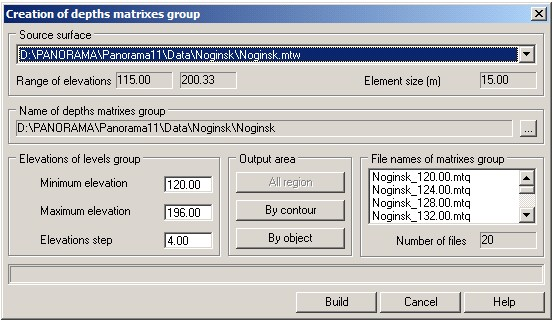

Dialog of Creation of depths matrixes group



To build a set of depths matrixes the presence of an open matrix of a bottom's relief (MTW) is necessary.

The number of files of a created set of depths matrixes (files MTQ) is defined by group's parameters of Elevations of levels group.

Names of files of a created set are formed of a name of a set of matrixes and height of the current modelled level.

Accuracy of each matrix of depths is defined by accuracy of an initial matrix of a relief (MTW) and is displayed in the window the Element size (m) in group the Source surface.
