Customizing of conformity of objects keys and ACAD layers

Print Previous page Top page

Customizing the appearance of layers panel displays a table of data correspondences.

To customize the correspondence between the layers of the DXF file and the keys of objects from the classifier, you need to double-click with the left mouse button on the line with the desired layer, in the dialog that appears, select the view of object from the classifier. After completing the selection of the object type, the key and name of the selected object will be written into the current row of the table.



H4_dxftomap

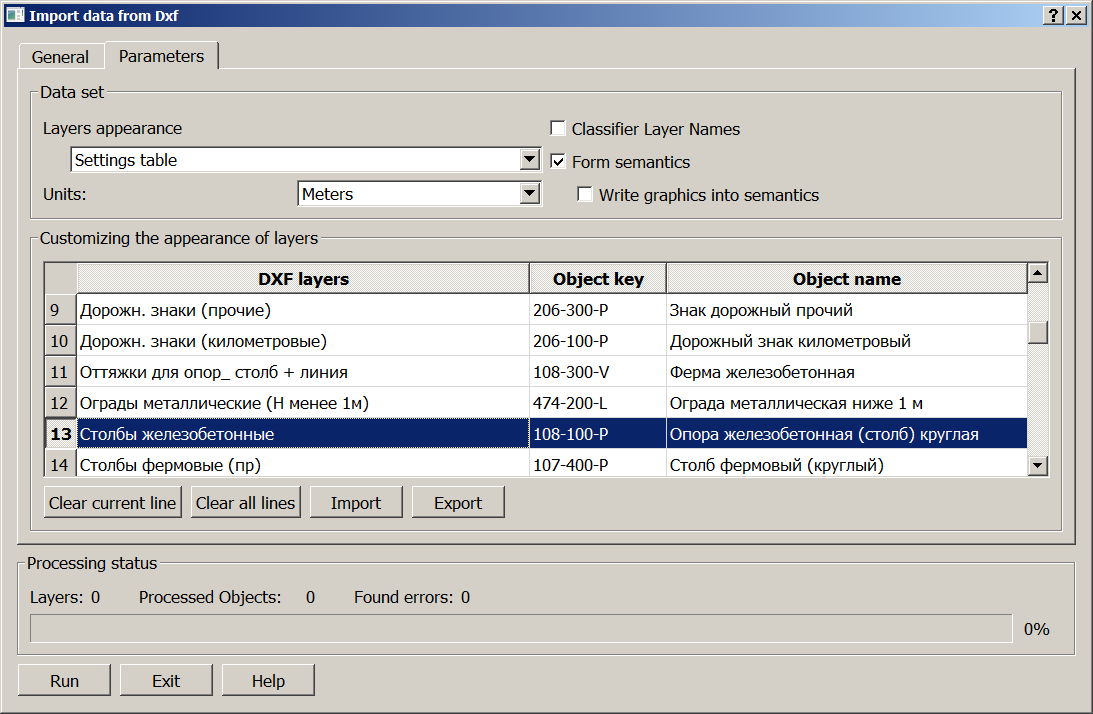

General view of the field оля Customizing the appearance of layers



The table is saved by clicking the Export button. In the file selection dialog, you must specify the name of the saved .cus file.

To open an existing settings table, click on the Import button. In the file selection dialog, specify the name of the downloaded .cus file.
