Creation of titles of coordinates of rotary points of object

Previous Top Next

ic_0126 As a result of an execution of operation there is a creation of the title of coordinates of each rotary (angular) point of the object specified on a map. After pressing the corresponding button, it is necessary for user to specify map object for which coordinates of rotary points need to be signed. The choice of linear or polygon object is possible. Creation of titles occurs according to a code specified in settings parameters. The task functions in a mode of dialogue. The text of the title is formed by the coordinates, corresponding to rotary point of the chosen object. The number of signs after a decimal point is defined in parameters of the Geodesy editor.



_engbm100

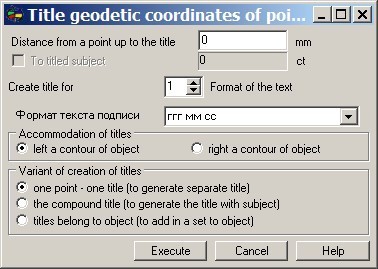

In dialogue it is necessary to check visually a format of representation of coordinates and to specify some parameters of titles creation:

- distance from a point of object up to the title in millimeters;

- to specify accommodation of titles (at the left or to the right of a contour of the chosen object);

- to choose a variant of creation of titles, etc.



At presence of subobjects at the object chosen for signing, it is possible to execute the formation of titles of rotary points of all subobjects. For this purpose it is necessary to set into true an element of dialogue «To title subject».
