Creation of titles of geodetic coordinates of rotary points of object

Previous Top Next

ic_0127 As a result of an execution of operation there is a creation of the title of geodetic coordinates of each rotary (angular) point of the object specified on a map. An execution of the given mode probably only for the maps supporting geodetic parameters (a projection, an axial meridian, etc.). After pressing the corresponding button, it is necessary for user to specify object on a map, geodetic coordinates of which rotary points need to be signed. The choice of linear or polygon object is possible. Creation of titles occurs according to a code specified in parameters of options. The task functions in a mode of dialogue.



 _engbm128

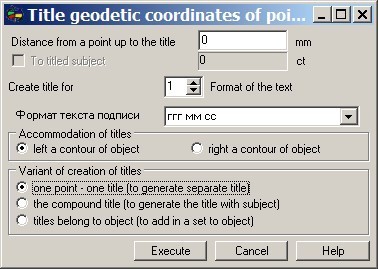

In dialogue it is necessary to specify some parameters of creation of titles:

- distance from a point of object up to the title in millimeters;

- a format of the text of the title (kind of representation of degree sizes of geodetic coordinates);

- to specify accommodation of titles (at the left or to the right of a contour of the chosen object);

- to choose variant of creation of titles, etc.



At presence of subobjects at the object chosen for signing, it is possible to execute formation of titles of geodetic coordinates of rotary points of all subobjects. For this purpose it is necessary to set into true an element of dialogue «To title subject».
