Setup of map classifier

The majority of modes and tasks of the geodetic block function according to the installed parameters. So for mapping from modes of calculated geodetic tasks (a theodolitic course, direct and return geodetic tasks, a tacheometry, setting works) are used the codes of objects specified on "Calculations" page in dialogue «Parameters of the project …». The codes of objects specified on "Editor" page are used at creation of objects by means of the Geodesy editor. At formation of the scheme for the report the codes of objects from "Scheme" page are used. Except for that at filling of the reports the technique of search of the corresponding values by conformity of names of key fields of a pattern and short names of semantics is used.

Order of setup and names of keys of objects and the semantic characteristics used by programs of the geodetic block are shown below.

For work of programs from structure "Geodetic tasks" presence of some the objects used at mapping and formation of reports is necessary.

In the map500.rsc classifier for these purposes the layer "GEODESY" is created. It includes the following objects:

№ п/п	Description of option	Name of object	Code of object	Key of object
Geodesy calculations
1	Point of theodolitic course	POINT OF THEODOLITIC COURSE	40130	P_TEO
2	Reference point	SUPPORT POINT	40120	P_SUPPORT
3	Landmark	POINT LANDMARK	40110	P_ORIENT
4	Calculated point	CALCULATED POINT	40150	P_CALCULATE
5	Crossing of coordinates lines	CROSSING OF COORDINATE LINES	40100	P_CROSS
6	Line of theodolitic course	LINE OF THEODOLITIC COURSE	40220	L_TEO
7	Basic line	BASIC LINE	40210	L_BASIS
8	Line of designing (registration)	LINE OF DESIGNING	40240	L_SHEPE
9	Direction onto point	DIRECTION ONTO POINT	40230	L_DIRECT
10	Site (plot)	CADASTRAL SITE	20305	S_PLOT
11	Titles of points names	TITLE OF POINT	40420	T_POINT
12	Titles of lines	TITLE OF LINE	40410	T_LINE
13	Titles of angles	TITLE OF ANGLE	40430	T_ANGLE
14	Titles of heights	TITLE OF HEIGHTS	40470	T_HEIGHT
15	Titles of coordinates	TITLE OF COORDINATES	40450	T_KOORD
Geodesy editor
16	Point	ARBITRARY ENTERED POINT	40160	P_PIKET
17	Vector	INDEX OF NEIGHBOURS ARRANGEMENT	40510	V_DIRECTION
18	Linear	LINE OF DESIGNING	40240	L_SHEPE
19	Polygon	CADASTRAL SITE	20305	S_PLOT
20	Title	ARBITRARY TITLE	40440	T_VARIANT
Scheme for the report
21	Point of theodolitic course	POINT OF THEODOLITIC COURSE	40130	P_TEO
22	Reference point	SUPPORT POINT	40120	P_SUPPORT
23	Landmark	POINT LANDMARK	40110	P_ORIENT
24	Line of theodolitic course	LINE OF THEODOLITIC COURSE	40220	L_TEO
25	Basic line	BASIC LINE	40210	L_BASIS
26	Border of a site	CADASTRAL SITE	20305	S_PLOT
27	Building	BUILDING	40360	S_BUILDING
28	Zone of restriction	ZONE OF RESTRICTION	20390	S_BURDEN
29	Rotary point	ROTARY POINT (EXISTING)	20100	P_PLOT
30	Line of designing	LINE OF DESIGNING	40240	L_SHEPE
31	Crossing of coordinates lines	CROSSING OF COORDINATE LINES	40100	P_CROSS
32	Index of direction	INDEX OF NEIGHBOURS ARRANGEMENT	40510	V_DIRECTION
33	Titles of point	TITLE OF POINT	40420	T_POINT
34	Titles of lines	TITLE OF LINE	40410	T_LINE
35	Titles of angle	TITLE OF ANGLE	40430	T_ANGLE
36	Titles of area	TITLE OF SQUARE	40460	T_SQUARE
37	Titles of coordinates	TITLE OF COORDINATES	40450	T_KOORD
38	Titles of frame	TITLE OF FRAME	40480	T_FRAME
39	Number (name) of object	OBJECT NUMBER (NAME)	40490	T_NAME

It those objects which it is necessary to specify in option parameters of an execution of this or that geodetic task. If necessary the user can execute any other settings at own discretion. However a number of functions of the program thus can be lost. For example, in system there is an opportunity of formation the scheme of a plot with various registration by structure for filling one report. For this purpose the program creates the scheme with the maximal structure of registration (the titles of points, coordinates, coordinate crosses, etc.) and places it on the screen for the subsequent editing. When editing is ended, there is a formation of the several figures (picture) corresponding to various registration. These figures correspond to key fields in a pattern of the report.

If in parameters to not specify various types of titles for various objects of settings, and to choose, for example, one type of the title for all options the program will incorrectly generate the image of the scheme.

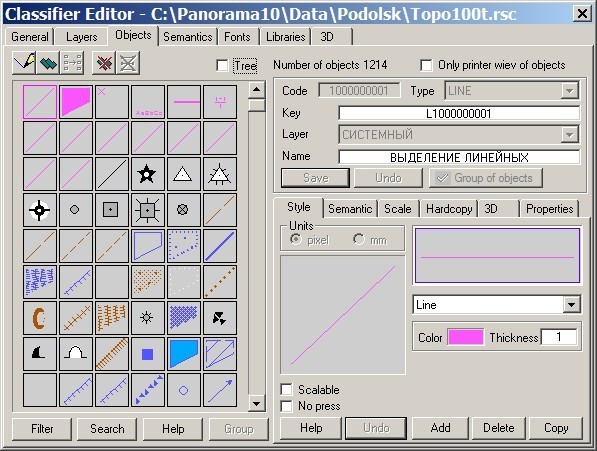

Types of objects specified in the table are used by the program for automation of process of setting up of the project by "Default" button. The principle of automatic setting up consists in search of the corresponding objects by a key. If you use other classifiers of a map then for automatic setting up of the project it is necessary to set at objects used by you the keys according to specified in the table. For these purposes the task «Editing of the classifier» is used.

For polygon object "PLOT" the set of semantics is stipulated (see tab. 1), corresponding to fields of the information for surveying affair:

The important information in the classifier is the key of semantics, because by this characteristic the program carries out search in patterns of reports of places where it is necessary to insert the attributive information. Setting up in the classifier map500.rsc are executed so that semantics of objects (their keys) coincided with names of fields in the table "Registration data" and accordingly with key fields in patterns of accounting documents.

Using the given options (setting up) it is possible to carry out accumulation of the attributive information about plots not in the table of a database, and in semantics of objects on an electronic map.

In "Geodesy editor" for formation of the report on semantics "To generate the scheme on semantics of object" the mode from structure of the panel "Formation of reports" is intended.

Code of semantics	Name of semantics	Key of semantics
1000	NUMBER OF ORDER	ORDER
1001	CADASTRAL NUMBER	KADNUM
1002	NUMBER OF SECTION	SECTION
1003	SURNAME OF OWNER	SURNAME
1004	NAME OF OWNER	NAME
1005	PATRONYMIC OF OWNER	PATRON
1006	INITIALS OF OWNER	INICIAL
1007	PASSPORT	PASVORD
1008	ORGAN WHICH GAVE PASSPORT	ORGAN
1009	DATE OF DELIVERY OF PASSPORT	PASDATE
1010	OBLAST, REPUBLIC	SUBJECT
1011	RAYON	REGION
1012	ADMINISTRATION	ADMINIST
1013	SETTLEMENT	CITY
1014	ADDRESS	STRIT
1015	AREA BY DOCUMENTS	AREADOC
1016	AREA BY MAP	AREAMAP
1017	PASSED AREA	AREAGIV
1018	ASSIGNMENT OF THE GROUNDS	ASSIGNME
1019	PURPOSE OF GRANTING OF SITE	PURPOSE
1020	RESTRICTIONS IN USING	LIMIT
1021	BURDENING	OVERLOAD
1022	CERTIFICATE ON THE PROPERTY	SVIDSOBSTV
1023	DATE OF CERTIFICATE DELIVERY	SVIDDATE
1024	DECISION OF THE CHIEF EXECUTIVE	POSTGLAV
1025	DATE OF DECISION DELIVERY	POSTDATE
1026	ENGINEER - LAND SURVEYOR	INGENER
1027	BEGINNING OF EXECUTION OF WORKS	BEGIN
1028	ENDING OF EXECUTION OF WORKS	END
1029	NAMES OF REFERENCE POINTS	NUMTHEO
1030	ADMISSION (ABSOLUTE ERROR)	DOP_FABS
1031	ADMISSION (RELATIVE ERROR)	DOP_FOTN
1032	ADMISSION (FB)	DOP_FB
1033	Н NAME OF INITIAL POINT T/C	NTB
1034	X COORD. OF INITIAL POINT T/C	XB
1035	Y COORD. OF INITIAL POINT	YB
1036	NAME OF FINAL POINT T/C	NTE
1037	X COORD. OF FINAL POINT T/C	XE
1038	Y COORD. OF FINAL POINT T/C	YE

The user can independently execute setting up of any classifier, having set necessary names of keys of semantics. It is possible to expand the list of attributive characteristics, simultaneously with it having added key fields into patterns.
