Formation of outlines of rotary points

Previous Top Next

ic_0111  The mode is intended for formation of outlines of rotary points and filling of accounting documents on the basis of pattern of Microsoft Word (Outline.dot.) After start of a mode it is necessary to choose on a map the polygon, closed, or linear object, which rotary points must be processed. Then dialogue Creation of of the scheme of rotary points becomes active in which it is necessary to specify parameters of outlines, conventional symbols for their registration and so on.

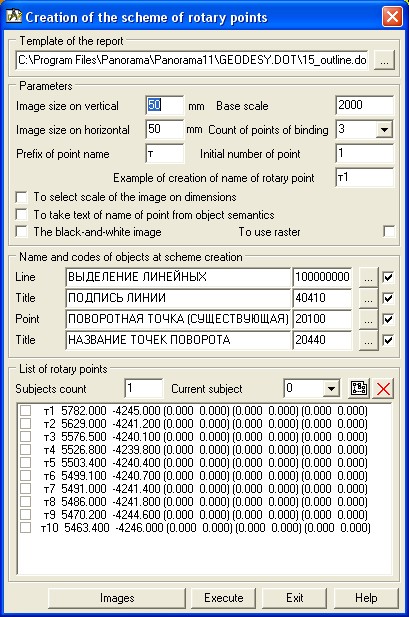

Description of dialogue Creation of of the scheme of rotary points.



_engbm334



The size of the image of the outlines placed into the formed document is set by elements: Image size on vertical and Image size on horizontal . By default these sizes are equal 50mm.

Base scale is requested from the main map of the document. It influences the image of an outline. If points of a binding have specified to a rotary point the scale of a picture is calculated by its dimensions in mm with that condition that the rotary point with points of a binding has been got onto a picture.

From one up to three points of binding can be appointed to the rotary point.

Number of points of a binding is set by means of the drop-DOWN list Count of points of binding .

To each rotary point of object the name is appropriated. It is formed of a prefix and number of a point. The prefix is specified in an edited element: Prefix of point name . And in an edited element Initial number of a point  the designation of the first point is necessary to specify. By default the first point has number 1, the second, accordingly, 2 and so on.

The formed name of the first point can be seen in an element: Example of creation of name of rotary point .

So that at formation of a name of a rotary point the text from 9-th semantics of object participated (the name own) include a tick: To take text of name of point from semantics .

Black-and-white image tick influences an image of a formed picture.

If tick is switched on the image is formed as black-and-white (printer-contour type), and at the switched off tick - the usual color image (contour type of a map).

To use raster tick should be switched on for drawing a rotary point on a raster background.

At creation of outlines can be applied:

- Lines (the lines connecting a rotary point and points of a binding);

- Titles of lines lengths;

- Rotary point;

- Title of a rotary point.



The choice of conventional symbols, management of structure of a picture is carried out in group: Name and codes of objects at scheme creation .

List of rotary points is displayed in the group of the same name. At presence in object of subobjects (subjects) it is possible to use as rotary points of a point of subobjects. Switching between subobjects is carried out by means of the drop-down list: Current subject . The zero corresponds to a contour of object.

At selection in the list of a line with a rotary point and its coordinates on a map the specified point is marked by blinking cross-hairs (cursor). If at a rotary point the points of binding have been specified they thus are marked on a map by labels: T1, T2, T3.

Use the button embim4 for the indication of points of binding. The button embim5 is intended for deleting points of binding from a line of a rotary point.

For convenience of work with the list of rotary points on the list the contextual menu is organized.

Way of start of a mode To print outline rotary points of object
