Description of dialogue Creation of linear object from *.CSV file

Top

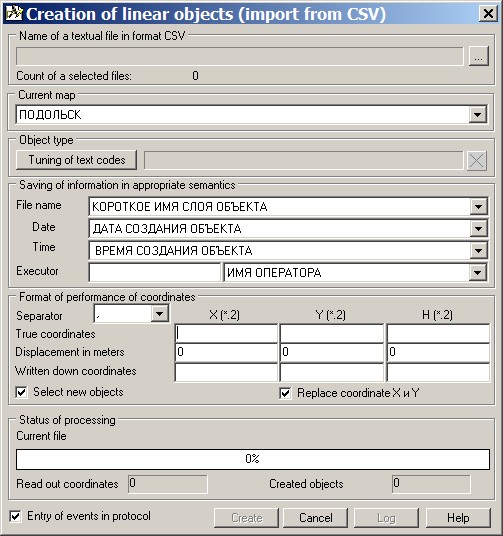

  _engbm130



Name of a textual file in format CSV  group is intended for a choice of a source file or group of files with CSV extension.

If one file is chosen, its full name is placed into an element: Name of a textual file in format CSV . At a choice of several files in an element: Name of a textual file in format CSV  a full path to the catalogue is displayed. Current map  section is intended for a choice of a vector or user map on which the objects will be created. The edited (current) map can be chosen from the list of the open maps, and by means of the button «…» it is possible to create new, or to add an existing user map.

Object type  element is intended for a choice of a conventional symbol from the classifier of an edited map.

Saving of information in appropriate semantics  group is intended for entering a name of a file (a name of CSV file often means a name or number of a measurements course), dates and time of creation of object, and also a surname of the executor into semantics of created object specified by the user.

The name of a file and a surname of the executor can be placed into any chosen semantics of character type. Semantics with TIME type is necessary for entering time, and date is saved into semantics with DATE type. At presence at a conventional symbol of listed semantics the program automatically distributes semantics under corresponding characteristics. If the saving the additional information is not required, choose in each list of semantics a line "Not installed".

Format of performance of coordinates  section is intended for rearrangement by places of coordinates X and Y and their changes onto the specified value. True coordinates  line is filled with the first pair coordinates from CSV file. In Written down coordinates  line the coordinates of the first created object are displayed which depend on the values specified by the user in a line Displacement in meters  and the included mode Replace coordinate X and Y .

Entry of events in protocol  element allows to keep the minutes of creations of objects. The text file with a name FromCSV.log is created in the catalogue of input files CSV.

Log  button is intended for viewing the filled protocol in text editor WordPad. The button becomes active after an execution of procedure of creation of objects from CSV files at the included mode Entry of events in protocol .
