Intersection Search

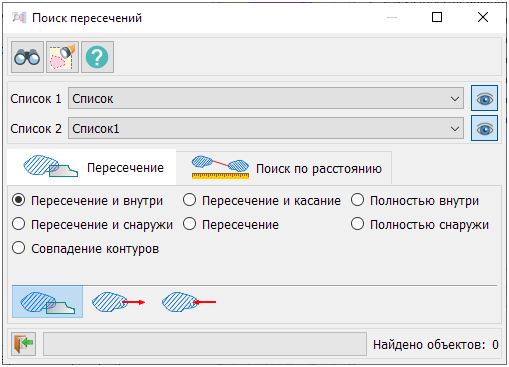

This mode is designed for searching/selecting objects from List 2 based on List 1.

clip0099

Operating Modes

	Find Objects	This mode is designed to find objects that meet the search criteria
	Select Objects	This mode is designed to select objects that meet the search criteria
	Show Objects	This mode is designed to include/exclude list objects in the search result
	Help	Call help

Intersection Search

	Find Intersecting	Search for intersecting objects is performed according to the selected intersection type.
	Find Starting In	Search for objects from List 2 that start within objects from List 1. Only linear and area objects are selected from List 1.
	Find Ending In	Search for objects from List 2 that end within objects from List 1. Only linear and area objects are selected from List 1.

For intersection search, specify the intersection type:

• Intersection and Inside

• Intersection and Outside

• Contour Match

• Intersection and Touching

• Intersection

• Completely Inside

• Completely Outside

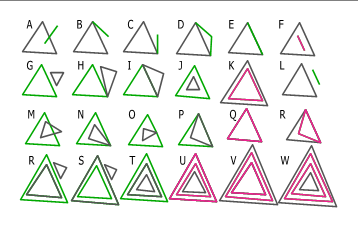

Intersection Results

№	Intersection Type	Description of Operation	Examples
1	Intersection and Inside	Objects from both lists that have touching or any type of intersection are selected
2	Intersection and Outside	Objects from both lists that are touching or non-intersecting objects are selected. This mode can be used to find islands that are outside water bodies or intersect their contour
3	Contour Match	This mode is used to find objects with matching contours
4	Intersection and Touching	Objects from both lists that have touching or intersecting contours are selected
5	Intersection	Objects from both lists that have intersecting contours are selected
6	Completely Inside	Objects from List 1 located completely inside List 2, without touching the contours, are selected
7	Completely Outside	Objects from List 1 located completely outside List 2, without touching the contours, are selected
8	Touching and Inside	Objects from List 1 located inside List 2 or having internal contour touch are selected

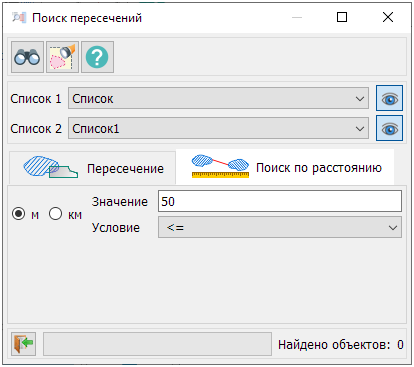

Proximity Search (Search by Distance)

For proximity search, specify the distance and the search condition.

clip0108

clip0109

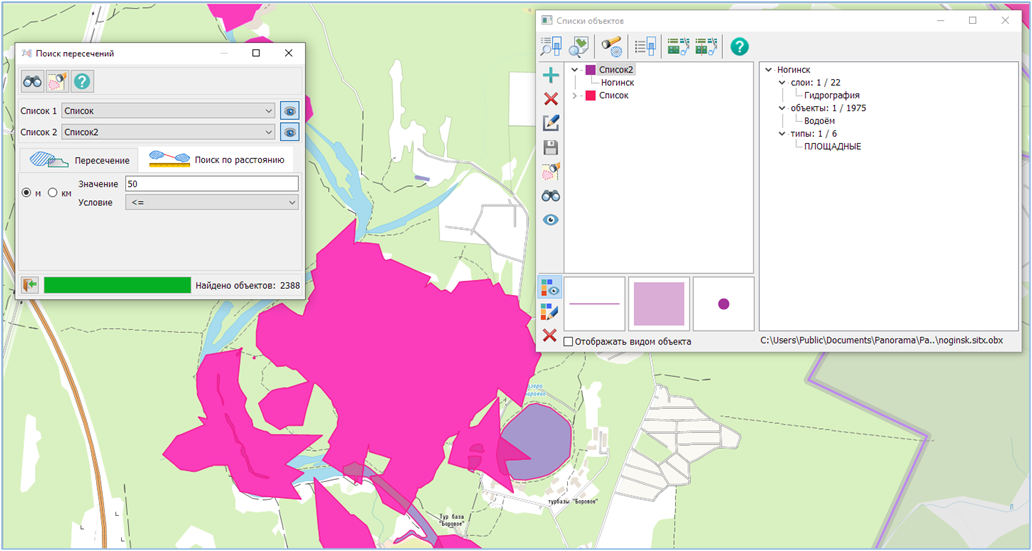

Search Results
