Measurements

 Print Previous page Top page Next page

On the Measurements tab, you can select objects based on their spatial characteristics (measurements).

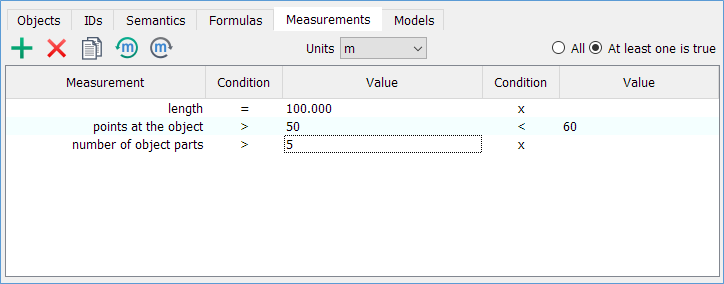

clip0115



Operation Modes



clip0116 Add

Add a measurement condition

clip0117 Delete

Delete the selected measurement condition

clip0118 Copy

Copy the selected measurement condition

clip0119 Undo

Revert to the original measurement conditions

clip0120 Reset

Clear all measurement conditions

Set a Generalized Condition



Set a generalized condition for the measurements:

• All (AND) – All conditions are taken into account.

• At least one (OR) – At least one condition is taken into account.



Working with the Measurement Conditions Table



Change Measurement









Double-click with the left mouse button in the Measurement list.

clip0121

Change Condition

Double-click with the left mouse button in the Condition field.

clip0122

Setting Conditions

To set a single measurement condition, select the condition and specify a value. Set the second condition to "x".

clip0123

To set a range of values, fill in all fields.

clip0124

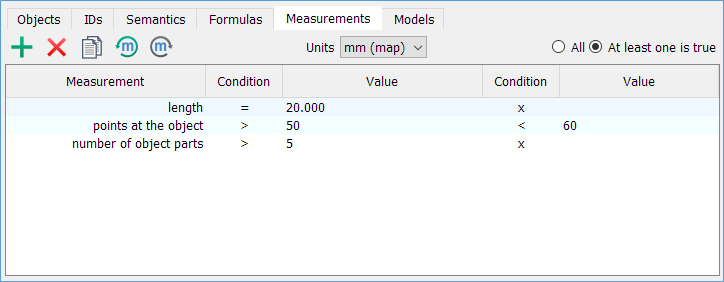

For Length, Area, and Perimeter measurements, you can change the unit of measurement.



clip0125
