Создание схемы базовых станций на объекте в отдельном окне

The mode is designed for creating a base station scheme in a separate window.

Procedure:

1. Select the object under study on the map.

After launching the mode, it is necessary to select the object under study on the map, for example, a land plot.

2. Enter the file name of the map being created.

After selecting the object under study, the dialog Creating base station scheme on object by coordinate catalog starts. In the dialog Creating base station scheme on object by coordinate catalog in the Parameters of created scheme group, specify the file name of the map being created (button "...").

3. Specify codes for objects to be created on the output map.

In the dialog Creating base station scheme on object by coordinate catalog in the Parameters of created scheme group, click the Scheme codes setup button. Configure the codes for objects to be created on the output map in the Parameters of base and determined stations layout scheme form.

4. Configure parameters of the print sheet frame to be created on the output map.

In the dialog Creating base station scheme on object by coordinate catalog in the Parameters of created scheme group, click the Frame setup button. Configure the parameters of the print sheet frame to be created on the output map in the "Print sheet frame parameters" form.

5. Select the coordinate catalog file name containing records with base station coordinates and GGS points.

In the dialog Creating base station scheme on object by coordinate catalog in the Coordinate catalog file name group, specify the coordinate catalog file (button "..."). The contents of the coordinate catalog file are displayed in the table located below the coordinate catalog file name.

6. Specify the base station from the coordinate catalog.

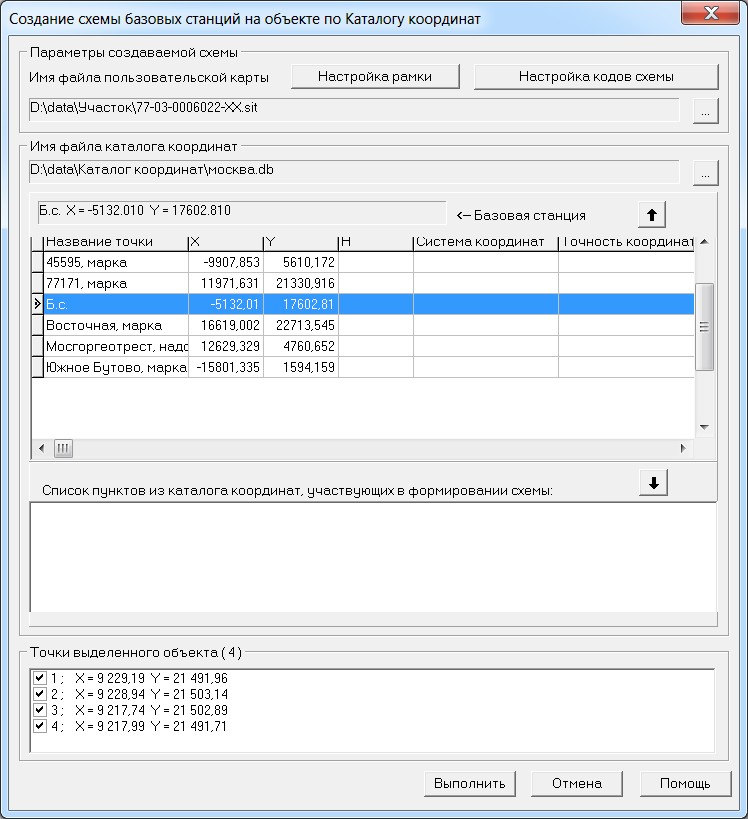

In the dialog Creating base station scheme on object by coordinate catalog in the Coordinate catalog file name group, in the coordinate catalog table, specify the record with the base station and click the UP button.

7. Specify the used GGS points from the coordinate catalog.

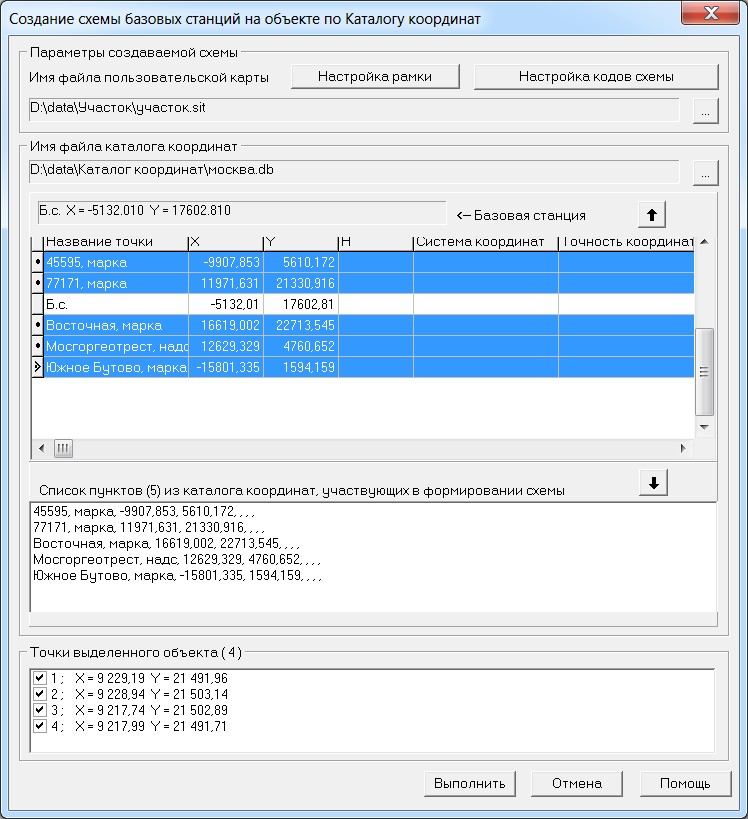

In the dialog Creating base station scheme on object by coordinate catalog in the Coordinate catalog file name group, in the coordinate catalog table, specify records with state geodetic network points and click the DOWN button. Selected records with geodetic network points are transferred to the List of points from coordinate catalog. The record with the base station should not get into the List of points from coordinate catalog - the program will check and issue a message if necessary. To select multiple records, use the key combination: Ctrl+Left mouse button.

8. Specify the used points of the object under study (Initialization points).

Initialization points (station points) are point objects highlighted on the map, or contour points of an area or closed linear object selected on the map. Initialization points in the dialog Creating base station scheme on object by coordinate catalog are displayed in the Points of selected object (number of points) list. Specify in the list those points that should appear on the scheme.

9. Launch scheme creation.

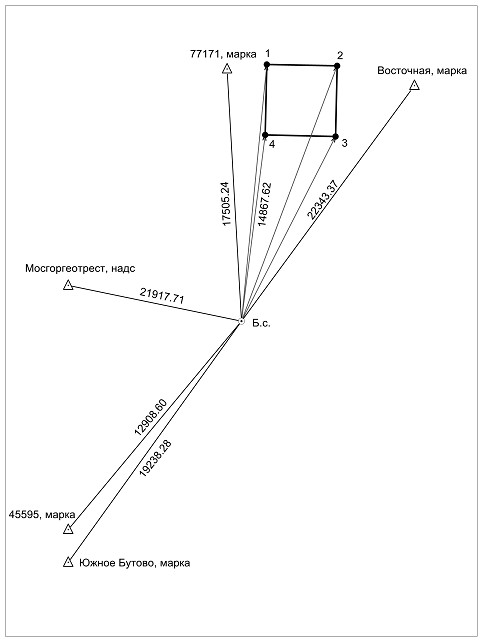

After configuring all parameters in the dialog Creating base station scheme on object by coordinate catalog, click the Execute button. The scheme is created on a new user map, which opens in a new window (document).
