Give to the object the value from a matrix

Previous Top Next

ic_0101 Operation of giving to object of value from a matrix is intended for formation at object of the semantic characteristic which numerical value is selected from a matrix. Before an execution of procedure it is necessary to mark those objects on a map at which the new semantic characteristic will be formed.

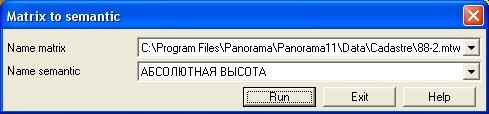

Then to choose the corresponding button on the panel of the Geodesy editor. For setting parameters of carried out procedure the dialogue is stipulated.



_engbm332



In dialogue it is necessary to specify from which matrix it is necessary to take data, and also what semantic characteristic it is necessary to add and fill by the information from a matrix. At filling the semantic characteristic the value from a matrix is read out by coordinates of the center of object. At a choice of a matrix the user gets access to the list of matrixes of heights and matrixes of quality.

To place value from a matrix of layers it is necessary to form preliminarily a matrix of investigated quality (for example, power of a layer).
