Description of dialogue: Creation of titles of rotary points

Top

As a result of operation there is a creation of the title of a rotary point of the object specified on a map. Atop of rotary points of object the point objects of the specified kind with filling of the semantic characteristics «Own name» can be created.



  _engbm133

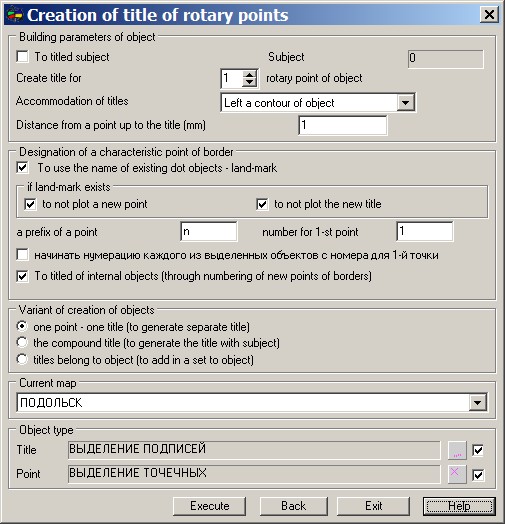

Creation of titles of rotary points of object.

In dialogue the following parameters for creation of titles can be set:

- Distance from a rotary point of object up to the title (mm.) (Building parameters of object group) .

- Accommodation of the title concerning a contour (to the left or to the right of a contour of object, considering a direction of a digitizing). Accommodation of titles (Building parameters of object group) is set by means of the drop-down list.

- Necessity of processing of rotary points of subjects . At presence of subobjects (subjects) at the object chosen for processing, it is possible to execute formation of titles of rotary points of all subobjects. For this purpose it is necessary to include a tick To title subjects (Building parameters of object group).

- A mode of processing of rotary points of object. The parameter is set by means of an element Create title for each N-th rotary point of object (Building parameters of object group) . The text of the title is formed by number of a rotary point.

- A mode of forming the title of a rotary point of object. The text of the title is formed by number of a rotary point.

If to include a tick To take the text from the existing dot objects entering into a set with signed object (Building parameters of object group) the text of the title is taken from the semantic characteristics «Own name» of the dot objects entering into a set with signed object. The program automatically defines which of dot objects corresponds to a rotary point of signed object, and chooses its semantics «Own name» as the text of the title. At absence in a place of a rotary point of the corresponding point object the text of the title is formed by number of a rotary point.

- A mode of forming the title of a rotary point of object. By means of group Variant of creation of objects it is possible to choose a variant of the created title.



Creation of dot objects atop of rotary points of object

In dialogue the following parameters of creation of dot objects can be set:

- Necessity of processing of rotary points of subjects . At presence of subobjects (subjects) at the object chosen for processing, it is possible to create dot objects for rotary points of all subobjects. For this purpose it is necessary to include a tick To title subjects (Building parameters of object group).

- A mode of processing of rotary points of object. The parameter is set by means of an element Create title for each N-th rotary point of object (Building parameters of object group) .

- A mode of creation of dot object. By means of group Variant of creation of objects it is possible to choose one of variants - to create dot objects as independent, or to include them into a set to processed object.

Current map  groupis intended for a choice of an electronic map on which objects will be created. The edited map can be chosen from the list of the open maps.

Object type  groupis intended for a choice of a type of created objects from the classifier of an edited map and switching-off of creation of titles or point objects.

Back  button is intended for a cancelling of operation on creation of objects on an edited map.
