To keep the image of the allocated fragments of a map

Previous Top Next

ic_0130 This mode is intended for saving the images of map fragments corresponding to external dimensions, the selected map objects. At presence of the selected objects graphic files by quantity of selected objects are formed. At absence of the selected objects, the program suggests to choose any object on a map, its sizes are requested and by them the graphic file is formed.

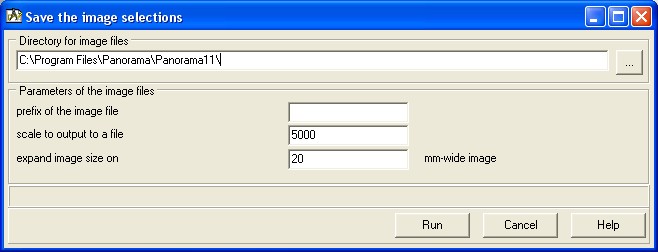

The sizes of a fragment can be operated in dialog of a mode.



_engbm333



Following options are stipulated:

1) Entering of a prefix of image file name . The name of a file is formed by number of the map object, if the prefix is entered, its value is inserted before number. For example, if objects 51, 67, 239 are selected, the prefix «Drawing_GA:» is entered, the following files will be as a result formed: «Drawing_ЗУ:51.emf», «Drawing_GA:67.emf» and «Drawing_GA:239.emf».

2) Management by scale of the image - the scale of the image placed into a graphic file corresponds to the value specified in dialogue. The base scale of the main map is used by default.

3) Management by sizes of the image. By default external sizes of a graphic file correspond to sizes of the selected objects on a map. In dialogue it is possible to specify the size onto which the fragment will be increased. This option is applied to inclusion in the image structure of titles of rotary points and other decoration located outside of a contour of a map object.
