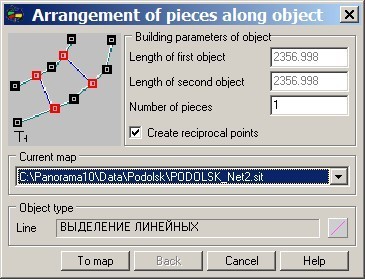

Description of dialog: Arrangement of pieces along object

Top

The given mode is intended for creation of pieces along object. The chosen objects are broken into the specified number of the pieces, the received points are united into a line. The first point of the first object with the first point of the second object, the second point of the first object with the second point of the second object and so on.



_engbm113



In group Building parameters of object  the length of the chosen objects is specified. It is necessary to enter number of pieces onto which the chosen objects will be broken.

Current map  group is intended for a choice of an electronic map on which the objects will be created. The edited map can be chosen from the list of the open maps.

Object type  group is intended for a choice of a sample of created linear object from the classifier of an edited map.

Back  button is intended for a cancelling of operation on creation of objects on an edited map.
