Parameters of a printed sheet's frame

Top

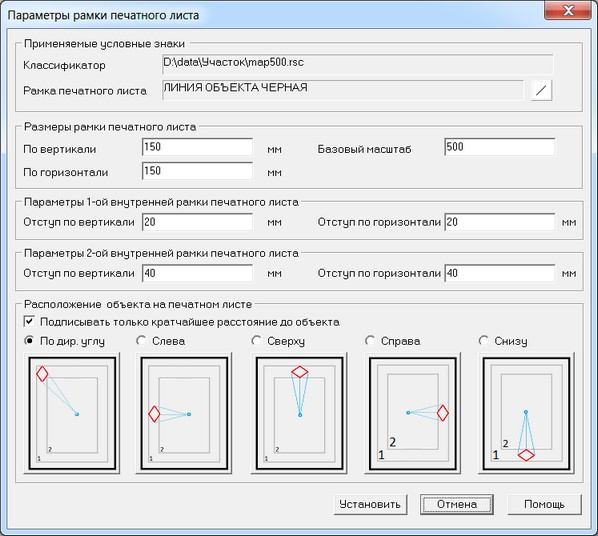

The form the Parameters of the frame of printed sheet is intended for the customizing a frame of a printing sheet formed in the mode: Creation of scheme of base stations on object in a separate window. Создание схемы базовых станций на объекте в отдельном окне.



_bm5129

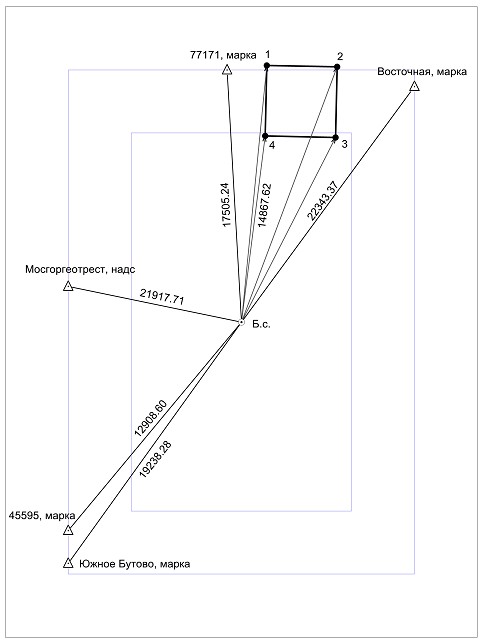

There are necessary the explanations about appointment of 1st and 2nd internal frames of a printed sheet. In the figure below, the first and the second internal frames of the printed sheet are shown in blue. These are virtual objects, they do not reach the scheme. Pay attention, between internal frames the object is located.

Directions onto points of a geodetic network at the activated check-box "To scale a direction to point" in the dialog "Parameters of scheme" are broken off by the first inner frame.
