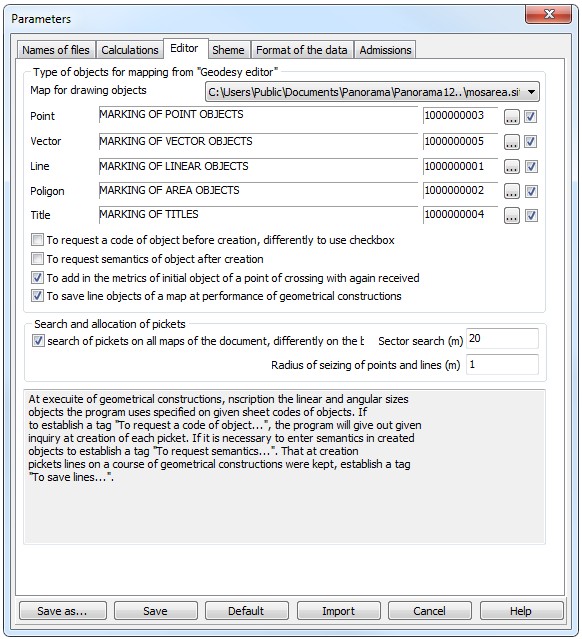

On Editor  page the codes of objects used in modes of the Geodesy editor  at mapping of the information are specified. These are modes from structure of panels: «Create objects», «Geometry constructions», «Constructions along object», «Modification of geometry of objects», «Signing of the sizes».

On this page a number of the parameters used in modes listed above is specified:

- If the flag «To request the code of object before creation...» is set the program will not use the codes specified in options, and will request it before each mapping of objects.

- An element «To request semantics of object after creation» is intended for a call during creation of object of the dialogue «Creation of object» for input of the semantic information.

- If an element «To add in the metrics of initial object of a point of crossing...» is set (the tick  is cocked) then during of an execution of operations of automatic creation of new objects, into already existing objects of a map new points are added in places of conjunction to new objects. Points are added not into all objects, and only into that which participate in constructions, that is are sources of the information for construction.

- During creation of point objects it is possible to create linear objects which connect a point a source and a new point. For creation of linear objects it is necessary to set a tick in an element «To save line objects of a map at performance of geometrical construction».

- In group «Search and allocation of pickets» it is possible to set width of a zone of search of pickets and to specify parameters of search. At the installed into true value of an element "search of pickets on all maps of the document", search and allocation of pickets is made on the basic and on all background (user) maps connected to the document. If the element is not installed, search of pickets occurs only on the basic map
