Description of dialog: Save selected objects in file *.TOB

Top

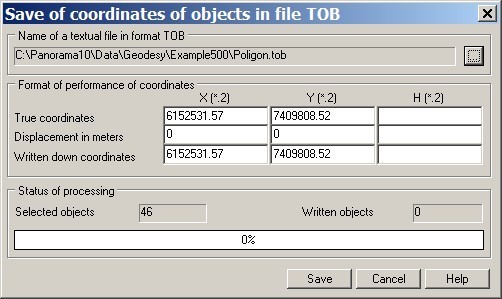

_engbm126



Name of a textual file in format TOB group is intended for a choice and display of a name of a saved file. At processing the several selected objects it is necessary to specify a directory for created files and the first symbols (prefix) of a file name. The name of a concrete file will be formed of the specified prefix (the common for all files) and numbers of processed object.

Format of performance of coordinates group is intended for display of coordinates of the first processed object. If necessary, it is possible to specify in view of a sign the size of displacement for coordinates. The metrics of object is written down into a separate output file. Preliminarily the amendment is brought into coordinates onto size of the specified displacement.
