Cutting of matrixes by selected objects

Top

The mode is intended for receiving several files of matrixes in MTW format in an automatic mode by dimensions of the selected objects. As an initial material some matrix maps opened in the document can be. The height in a concrete point is taken by the most exact matrix covering given area.

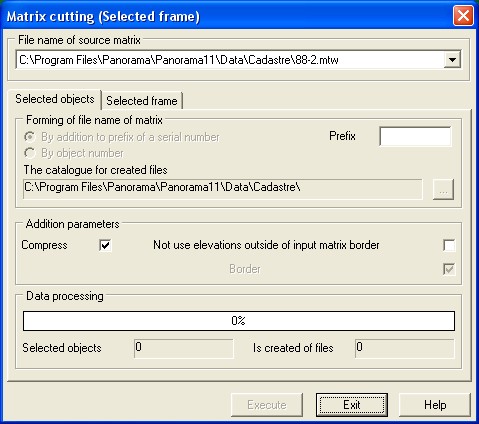

_engbm346



Catalogue for created matrixes is chosen in Forming of file name of matrix  group by means of the "…."button.

Name of a created matrix is formed by two ways:

by object number;

by addition to a prefix of a serial number of a created matrix.

Additional parameters:

Compression of a file.  The option is intended for compression of a file of a formed matrix. It is recommended to apply compression of a matrix to economy of disk space.

To set by border the selected object.  The option is intended for specifying as a border of a formed matrix of a contour of the selected object.
